Something that i keep seeing in documentation, in forum code and in real systems is transactions that have names

BEGIN TRANSACTION VeryImportantProcess

<do stuff>

COMMIT VeryImportantProcess

Now the question came up on the forums a while back as to what the point of this is. Why would you name a transaction, what effect does it have on behaviour and how is it treated internally?

In the first post in this series I had a look at nested transactions and in that post we saw that nested transactions don’t have any effect on how the transactions are treated. The BEGIN TRANSACTION statement isn’t even logged if there’s already an open transaction in that session and a ROLLBACK still rolls everything back (unless it’s specifically rolling back to a savepoint)

First question then regarding naming of transactions is whether it has any effect at all on that behaviour.

CREATE TABLE TestTrans (
ID int,
InsertDate DATETIME
);

BEGIN TRANSACTION OuterTran
  INSERT INTO TestTrans (ID, InsertDate) VALUES (1,GETDATE())
  BEGIN TRANSACTION InnerTran
    INSERT INTO TestTrans (ID, InsertDate) VALUES (2,GETDATE())
  COMMIT TRANSACTION InnerTran
ROLLBACK TRANSACTION OuterTran

SELECT * FROM TestTrans

Clearly none. Even with all the transactions named, a commit of a named transaction did not commit anything until the transaction nest level reached 0. A rollback still rolls back everything.

Ok, so maybe there’s some internal usage for a transaction’s name. Let’s have a look at the transaction log to see.

CHECKPOINT;

BEGIN TRANSACTION OuterTran
  INSERT INTO TestTrans (ID, InsertDate) VALUES (1,GETDATE())
  BEGIN TRANSACTION InnerTran
    INSERT INTO TestTrans (ID, InsertDate) VALUES (2,GETDATE())
  COMMIT TRANSACTION InnerTran
ROLLBACK TRANSACTION OuterTran

SELECT * FROM fn_DBLog(NULL, NULL)

The outer transaction’s name appears in the log, replacing what was ‘user_transaction’ previously, but other than that there’s no differences. The inner transaction still doesn’t appear anywhere in the log, neither does the inner commit, and the rollback doesn’t reference the transaction name anywhere.

So what conclusion can we come to here? Pretty much that naming of transactions has one real use, as a form of documentation. Instead of putting a comment above an BEGIN TRANSACTION we can give the transaction a name that indicates what the transaction does, That’s about the only real use.

With two exceptions.

There’s a seldom used option on a BEGIN TRANACTION, an optional WITH clause, Using that along with the transaction name can have some uses in exceptional circumstances.

BEGIN TRANSACTION VeryImportantProcess WITH MARK

<do stuff>

COMMIT TRANSACTION VeryImportantProcess

Now if we run an example of that and look into the log, there’s something different there. Interestingly, the difference isn’t on the BEGIN_XACT, it’s on the COMMIT_XACT log record.

The question still stands though, why do this? Why name a transaction and put a mark of that into the transaction log. What  benefit does it give?

The mark can be used with a rather poorly known and seldom used pair of options on the restore command (when restoring transaction log backups)

• WITH STOPAFTERMARK
• WITH STOPBEFOREMARK

These two, similar to the better known STOPAT can be used to stop a transaction log restore part way through a log backup. Unlike STOPAT, they don’t take a time, but rather take a string, a name that was used for a marked transaction name.

Now to be honest there’s not all that much use for this. If a user drops a table or otherwise messes data up requiring a restore to the point before that happened they’re not going to be nice and run that accidental data mess up in a named, marked transaction.

Where it can be useful is when the transaction crossed multiple databases and/or multiple servers. The log mark appears in all of them and can therefore be used to restore multiple databases to a consistent state where that consistent state is not a single point in time.

Still, it’s useful to have in the toolbox just in case some circumstance comes up where it’s needed.

Edit: It was pointed out, both on twitter and in the comments, that adding a name to a transaction reflects in the transaction-related DMVs and potentially makes debugging easier. Absolutely, it can do and it’s a valid reason to name transactions, I’m lumping that in with ‘documentation’ in the discussions here.

There’s another case where naming transactions can affect behaviour and in this case usually in a bad way. I’ll look at in in more detail in part 4 of this series, but for now will just reference the relevant segment in Books Online:

transaction_name Is the name assigned to the transaction on BEGIN TRANSACTION. transaction_name must conform to the rules for identifiers, but only the first 32 characters of the transaction name are used. When nesting transactions, transaction_name must be the name from the outermost BEGIN TRANSACTION statement. transaction_name is always case sensitive, even when the instance of SQL Server is not case sensitive.

The full list is:

1. A Mess of Nested Transactions
2. Savepoints and conditional transactions
3. Why would you want to name a transaction? (This post)
4. When naming transactions causes an error

This is the second in a short series on transactions. In the previous part I discussed nested transactions and showed that they actually don’t exist. SQL has syntax which may suggest that nested transactions exist, but it’s just a syntactical lie.

One thing I suggested in that post was that transactions should be started and committed (or rolled back) at one level only.

That’s a nice idea, but it often doesn’t work when dealing with existing systems which may have been developed with less attention to transactions than ideal. What happens when a stored procedure needs to run in a transaction and potentially roll back its changes, but can be called either within an existing transaction or independently?

The answer to that comes in two parts, first the conditional starting of a transaction and secondly save points.

I should mention that this is fairly advanced transaction management, it’s not something I see in production code very often. It should be considered carefully before being used, as if the people supporting the code don’t understand this, there could be trouble.

Let’s start with some setup. Some random tables and a stored procedure which inserts into parent and child tables.

CREATE TABLE Parent (
    SomeID INT IDENTITY PRIMARY KEY,
    SomeRandomValue VARCHAR(50),
    NotificationRequired BIT DEFAULT 0
);

CREATE TABLE Child (
    SomeOtherID INT IDENTITY PRIMARY KEY,
    ParentID INT,
    State INT,
    SomeValue INT
);

CREATE TABLE Notifications (
    ParentID INT,
    NotificationText VARCHAR(1000),
    NotificationDate DATETIME DEFAULT GETDATE()
);

Let’s say an outer procedure which may insert into the parent table, inserts into the child table and then calls another procedure. The other procedure inserts a notification into a table.

CREATE PROCEDURE OuterProc (@SomeValue VARCHAR(50), @SomeOtherValue INT)
AS

DECLARE @ParentID INT;

BEGIN TRY
    BEGIN TRANSACTION

    IF NOT EXISTS ( SELECT  1
                    FROM    dbo.Parent
                    WHERE   SomeRandomValue = @SomeValue )
        BEGIN
            INSERT  INTO dbo.Parent
                    (SomeRandomValue)
            VALUES  (@SomeValue);

            SELECT  @ParentID = @@IDENTITY;
        END
    ELSE
        SELECT  @ParentID = SomeID
        FROM    dbo.Parent
        WHERE   SomeRandomValue = @SomeValue;

    INSERT  INTO dbo.Child
            (ParentID, SomeValue)
    VALUES  (@ParentID, @SomeOtherValue);

    UPDATE  dbo.Parent
    SET     NotificationRequired = 1
    WHERE   SomeID = @ParentID;

    EXEC NotificationProc @ParentID;

    COMMIT TRANSACTION
END TRY
BEGIN CATCH
    ROLLBACK TRANSACTION;
-- other error handling here
END CATCH
GO

There are some potential race conditions in there, but let’s ignore those for now, it’s not the point of this post.

The requirement for the notification procedure is that if it throws an error all of its changes must be undone however the changes in the outer procedure must still commit. The notification procedure can be called independently or from within the OuterProc

The starting code for the notification procedure is:

CREATE PROCEDURE NotificationProc (@AnID INT)
AS
    UPDATE  dbo.Parent
    SET     NotificationRequired = 0
    WHERE   SomeID = @AnID

    INSERT  INTO dbo.Notifications
            (ParentID,
             NotificationText,
             NotificationDate
            )
            SELECT  SomeID,
                    SomeRandomValue,
                    GETDATE()
            FROM    dbo.Parent
            WHERE   SomeID = @AnID;

GO

This currently has no transaction management at all. Let’s start by implementing the first requirement, if called from outside of any transaction, it must begin a transaction and either commit or rollback all changes.

To do this, we can check the value of @@Trancount to see whether a transaction should be started or not.

CREATE PROCEDURE NotificationProc (@AnID INT)
AS
    DECLARE @Independent BIT = 0;
    IF @@TRANCOUNT = 0  -- proc called from outside of any transaction
        SET @Independent = 1;

    BEGIN TRY
        IF @Independent = 1
            BEGIN TRANSACTION;

        UPDATE  dbo.Parent
        SET     NotificationRequired = 0
        WHERE   SomeID = @AnID;

        INSERT  INTO dbo.Notifications
                (ParentID,
                 NotificationText,
                 NotificationDate
                )
                SELECT  SomeID,
                        SomeRandomValue,
                        GETDATE()
                FROM    dbo.Parent
                WHERE   SomeID = @AnID;

        IF @Independent = 1
            COMMIT TRANSACTION;

    END TRY
    BEGIN CATCH

        IF @Independent = 1
            ROLLBACK TRANSACTION;

        THROW;

    END CATCH;

GO

The THROW is there so that any error can be passed up to the caller to be logged or otherwise handled. It also ensures that it fires any catch block in the calling code.

That’s the first half, the transaction handling if called independently, but it doesn’t help with the second requirement, that the changes made in the notification procedure roll back if there’s an error, but leave the changes made in the calling procedure unaffected and the transaction open. To do that, we need a savepoint.

From Books Online:

A user can set a savepoint, or marker, within a transaction. The savepoint defines a location to which a transaction can return if part of the transaction is conditionally canceled. If a transaction is rolled back to a savepoint, it must proceed to completion with more Transact-SQL statements if needed and a COMMIT TRANSACTION statement, or it must be canceled altogether by rolling the transaction back to its beginning.

It’s not a nested transaction, it’s not like Oracle’s autonomous transactions, it’s just a point within the transaction to which we can roll back to. It lets us undo the most recent part of a transaction.

ALTER PROCEDURE NotificationProc (@AnID INT)
AS
    DECLARE @Independent BIT = 0;
    IF @@TRANCOUNT = 0  -- proc is being called from outside of any transaction
        SET @Independent = 1;

    BEGIN TRY
        IF @Independent = 1
            BEGIN TRANSACTION;
        ELSE
            SAVE TRANSACTION Notifications; -- Define a savepoint which we can roll the transaction back to.

        UPDATE  dbo.Parent
        SET     NotificationRequired = 0
        WHERE   SomeID = @AnID;

        INSERT  INTO dbo.Notifications
                (ParentID,
                 NotificationText,
                 NotificationDate
                )
                SELECT  SomeID,
                        SomeRandomValue,
                        GETDATE()
                FROM    dbo.Parent
                WHERE   SomeID = @AnID;

        IF @Independent = 1
            COMMIT TRANSACTION;

    END TRY
    BEGIN CATCH

        IF @Independent = 1
            ROLLBACK TRANSACTION; -- roll back the entire transaction
        ELSE
            ROLLBACK TRANSACTION Notifications; -- roll back to the save point

        SELECT  ERROR_NUMBER(),
                ERROR_MESSAGE(),
                ERROR_LINE(); -- In reality, log this somewhere

    END CATCH;

GO

Looks good, let’s test. To test, I’m going to add a check constraint to the Notifications table that will be violated by the insert in the Notification procedure. This is to simulate the kind of errors that can happen in a real system (key violations, data type conversion failures, check constraint violations, etc). I’ll also add some sample data to the Parent table.

ALTER TABLE Notifications ADD CONSTRAINT Testing CHECK (NotificationDate > '2020-01-01')

INSERT INTO dbo.Parent (SomeRandomValue, NotificationRequired)
VALUES  ('abc',0), ('def',1),('ghi',0),('jkl',1),('mno',1);

First test, outside of a transaction. The requirement is that neither of the changes in the proc remain after the execution (because of the error)

SELECT SomeID, SomeRandomValue, NotificationRequired FROM dbo.Parent WHERE SomeID = 2;

EXEC dbo.NotificationProc @AnID = 2;

SELECT SomeID, SomeRandomValue, NotificationRequired FROM dbo.Parent WHERE SomeID = 2;
SELECT * FROM dbo.Notifications WHERE ParentID = 2;

Success. When run independently the two data modifications were run in a transaction and when the error occurred, were rolled back.

Now let’s try from within an existing transaction. The changes made in the outer procedure (insert of a row into Child and update NotificationRequired to 1 in Parent must commit, but the changes made in the inner proc must not)

SELECT SomeID, SomeRandomValue, NotificationRequired FROM dbo.Parent WHERE SomeID = 1;

EXEC dbo.OuterProc @SomeValue = 'abc', @SomeOtherValue = 7;

SELECT SomeID, SomeRandomValue, NotificationRequired FROM dbo.Parent WHERE SomeID = 1;
SELECT SomeOtherID, ParentID, SomeValue FROM dbo.Child WHERE ParentID = 1;
SELECT * FROM dbo.Notifications WHERE ParentID = 1;

Again, exactly the desired behaviour. The changes made in the outer procedure were committed, the changes in the inner procedure, the procedure where the error was thrown, were rolled back.

Used correctly, savepoints can be a powerful mechanism for managing transactions in SQL Server. Unfortunately they’re not well known and as such their use can also make code much harder for later developers to debug.

The next part of the series on transactions will look at why (and why not) you’d want to name a transaction.

The full list is:

1. A Mess of Nested Transactions
2. Savepoints and conditional transactions (This post)
3. Why would you want to name a transaction?
4. When naming transactions causes an error

Transactions are an area that I often find are used badly, or not used at all. Transactions without any error handling, nested transactions, named transactions named for no good reason or just plain lack of transactions where they should be used.

This is going to be the first of three posts looking at some aspects of transactions and transaction management. And deserving of the first post is that most misunderstood of things, the nested transaction.

Before getting into the details, I need to make one thing clear. Nested transactions are a lie. They do not exist in SQL Server.

A piece of code may appear to have multiple nested transactions in it. It may have multiple BEGIN TRANSACTION statement in it. It only has one transaction though.

An easy way to show this would be to look at the transaction log. Since transactions are there to make multiple statements atomic (committed or rolled back as a unit), the transactions must be reflected in the transaction log to allow SQL to know where to roll things back to or what statements need to be undone/redone as a unit.

CREATE TABLE TestingTransactions (
SomeNumber INT,
SomeString VARCHAR(50)
);
GO

INSERT INTO dbo.TestingTransactions (SomeNumber, SomeString)
VALUES  (0, 'Zero');

CHECKPOINT; -- mark the log as reusable

BEGIN TRANSACTION

	INSERT INTO dbo.TestingTransactions (SomeNumber, SomeString)
	VALUES  (1, 'One');

	BEGIN TRANSACTION

		INSERT INTO dbo.TestingTransactions (SomeNumber, SomeString)
		VALUES  (2, 'Two');

		BEGIN TRANSACTION

			INSERT INTO dbo.TestingTransactions (SomeNumber, SomeString)
			VALUES  (3, 'Three');

		COMMIT TRANSACTION

	COMMIT TRANSACTION

COMMIT TRANSACTION

SELECT Operation, Context, [Transaction ID], AllocUnitName, [Transaction Name]
FROM fn_dblog(NULL, NULL);

GO

I’m inserting a row before the transaction because allocating the first page to a table generates a lot of log entries. Those log records are not relevant to the subject at hand and will just confuse things.

One table, three transactions, three inserts, three commits. Let’s see what went into the transaction log.

What went into the log was a single begin transaction, a single commit and three inserts. The other two begin transaction statements, and the other two commit transaction statements were completely ignored for the purposes of the transaction log.

The other two begin transaction statements did do something. Not very much, and nothing that reflected in the transaction log, but they did do one thing, and if I make the code a little more complicated it’ll become clear what that one thing is.

CHECKPOINT; -- mark the log as reusable

BEGIN TRANSACTION

	INSERT INTO dbo.TestingTransactions (SomeNumber, SomeString)
	OUTPUT inserted.*
	VALUES  (1, 'One');
	SELECT @@TRANCOUNT AS TransactionCountAfterBeginTran1;

	BEGIN TRANSACTION

		INSERT INTO dbo.TestingTransactions (SomeNumber, SomeString)
		OUTPUT inserted.*
		VALUES  (2, 'Two');
		SELECT @@TRANCOUNT AS TransactionCountAfterBeginTran2;

		BEGIN TRANSACTION

			INSERT INTO dbo.TestingTransactions (SomeNumber, SomeString)
			OUTPUT inserted.*
			VALUES  (3, 'Three');
			SELECT @@TRANCOUNT AS TransactionCountAfterBeginTran3;

		COMMIT TRANSACTION
		SELECT @@TRANCOUNT AS TransactionCountAfterCommitTran1;

	COMMIT TRANSACTION
	SELECT @@TRANCOUNT AS TransactionCountAfterCommitTran2;

COMMIT TRANSACTION
SELECT @@TRANCOUNT AS TransactionCountAfterCommitTran3;

Each BEGIN TRANSACTION incremented the value returned by @@TranCount, each COMMIT TRANSACTION decremented the value returned by @@TranCount. If I looked at the transaction log after each statement, the BEGIN_XACT log entry corresponds to the BEGIN TRANSACTION which incremented @@Trancount from 0 to 1, and the COMMIT_XACT log entry corresponds to the COMMIT TRANSACTION which decremented @@Trancount from 1 to 0.

Only the operations which changed @@Trancount to or from 0 are reflected in the transaction log, they’re the only ones which have any effect on what becomes part of the database’s durable state.

Does ROLLBACK then follow the same rules? Does it get ignored unless it’s the last statement of multiple COMMIT/ROLLBACK statements?

CHECKPOINT; -- mark the log as reusable

BEGIN TRANSACTION

	INSERT INTO dbo.TestingTransactions (SomeNumber, SomeString)
	OUTPUT inserted.*
	VALUES  (1, 'One');
	SELECT @@TRANCOUNT AS TransactionCountAfterBeginTran1;

	BEGIN TRANSACTION

		INSERT INTO dbo.TestingTransactions (SomeNumber, SomeString)
		OUTPUT inserted.*
		VALUES  (2, 'Two')
		SELECT @@TRANCOUNT AS TransactionCountAfterBeginTran2;

		BEGIN TRANSACTION

			INSERT INTO dbo.TestingTransactions (SomeNumber, SomeString)
			OUTPUT inserted.*
			VALUES  (3, 'Three')
			SELECT @@TRANCOUNT AS TransactionCountAfterBeginTran3;

		ROLLBACK TRANSACTION
		SELECT @@TRANCOUNT AS TransactionCountAfterRollbackTran1;

	COMMIT TRANSACTION
	SELECT @@TRANCOUNT AS TransactionCountAfterCommitTran2;

COMMIT TRANSACTION
SELECT @@TRANCOUNT AS TransactionCountAfterCommitTran3;

SELECT Operation, Context, [Transaction ID], AllocUnitName, [Transaction Name]
FROM fn_dblog(NULL, NULL);

No. The ROLLBACK TRANSACTION set the value of @@Trancount directly to 0 and undid all of the inserts back to the outermost BEGIN TRANSACTION. The COMMIT TRANSACTION statements which ran after it all threw errors

Msg 3902, Level 16, State 1, Line 39
The COMMIT TRANSACTION request has no corresponding BEGIN TRANSACTION.

This is the danger of nesting transactions, that one ROLLBACK, anywhere after the first BEGIN TRANSACTION will undo everything right the way back to that first BEGIN TRANSACTION. These are not autonomous transactions being run one inside another, there’s a single transaction and rollback anywhere will roll back everything.

This can be a debugging nightmare when the application creates a transaction and calls a procedure which begins a transaction which calls other procedures which begin and commit transactions. If something goes wrong in one procedure and that procedure rolls the transaction back, it can end up undoing a lot more work than the developer of that procedure may have expected.

In general I would recommend only starting and committing transactions at a single level, and making transaction handling part of the application’s design, not something that falls out of the implementation by accident. If there’s an intentional design around how transactions will be handled (and choosing not to have any is not a good idea), then it’s a lot less likely that there will be transaction-related bugs that need to be found and fixed.

And what happens when working with an existing app where this wasn’t done? I’ll look at that in the next post on transactions, on conditionally starting transactions and on the use of savepoints.

The full list is:

1. A Mess of Nested Transactions (This post)
2. Savepoints and conditional transactions
3. Why would you want to name a transaction?
4. When naming transactions causes an error

Do errors encountered within a transaction result in a rollback?

It seems, at first, to be a simple question with an obvious answer. Transactions are supposed to be atomic, either the entire transaction completes or none of it completes.

Maybe too simple…

CREATE TABLE TestingTransactionRollbacks (
 ID INT NOT NULL PRIMARY KEY ,
 SomeDate DATETIME DEFAULT GETDATE()
 ) ;
GO
BEGIN TRANSACTION
-- succeeds
INSERT INTO TestingTransactionRollbacks (ID)
 VALUES (1)
-- Fails. Cannot insert null into a non-null column
INSERT INTO TestingTransactionRollbacks (ID)
 VALUES (NULL)
-- succeeds
INSERT INTO TestingTransactionRollbacks (ID)
 VALUES (2)
-- fails. Duplicate key
INSERT INTO TestingTransactionRollbacks (ID)
 VALUES (2)
-- succeeds
INSERT INTO TestingTransactionRollbacks (ID)
 VALUES (3)
COMMIT TRANSACTION
GO
SELECT ID, SomeDate FROM TestingTransactionRollbacks
GO
DROP TABLE TestingTransactionRollbacks

If a transaction rolled back at the first failure, that final select would return no rows. But it doesn’t, it returns 3 rows. The failure of the individual statements was ignored and the transaction completed and committed. If that had been an important business process, not a made-up example, that could have some nasty consequences for transactional consistency of data.

What’s really going on here? Aren’t transactions supposed to be atomic? Isn’t SQL supposed to roll them back if they don’t complete successfully?

Well, kinda.

(more…)

So, it’s the second Tuesday of the month again, and it’s time for T-SQL Tuesday again. This month it’s hosted by Sankar Reddy and the topic is “Misconceptions in SQL Server”

I thought I’d tackle a trio of table variable myths and partial truths.

Table Variables are memory-only

This one is pervasive and irritating. It typically goes like this:

You should use table variables rather than temp tables because table variables are memory only.

This myth can be broken down into two parts:

1. That table variables are not part of TempDB
2. That table variables are not written to disk

The first is easy to prove and has been done repeatedly. I’m not doing it again. I’m going to tackle the second portion only.

See, one could argue that, even though the table variable is created in the TempDB system tables and allocated pages within the TempDB data file, it is still kept entirely and only in memory. Let’s see if that’s true…

DECLARE @LargeTable TABLE (
id INT IDENTITY PRIMARY KEY,
LargeStringColumn1 CHAR(100),
LargeStringColumn2 CHAR(100)
)

INSERT INTO @LargeTable (LargeStringColumn1, LargeStringColumn2)
SELECT TOP (100000) 'Table Variable Test','T-SQL Tuesday!'
FROM master.sys.columns a CROSS JOIN master.sys.columns b

WAITFOR DELAY '00:01:00' -- so that the table var doesn't go out of scope and get deallocated too quickly.

This is not a massively large table. 100000 rows at 204 bytes per row (excluding header). A query of sys.dm_db_index_physical_stats (which does work on temp tables and table variables) reveals a total page count of 2632. That’s a grand total of 20.6 MB. 20 Megabytes. The SQL instance I’m running this on is allowed to use up to 2 GB of memory. No way on earth is this table variable going to cause any form of memory pressure (and I promise there is nothing else running)

So, run that code and, while that waitfor is running, do something that should never be done to a SQL server that you care anything about. (more…)

Over the last several months I’ve had a look at IN, Exists, Join and their opposites to see how they perform and whether there’s any truth in the advice that is often seen on forums and blogs advocating replacing one with the other.

Previous parts of this series can be found:

• Exists vs In
• In vs Inner Join
• Not Exists vs Not In
• Not Exists vs Left Outer Join … Is Null

In this roundup post, I’m going to do multiple tests on the 6 query forms, with different numbers of rows, indexes, no indexes and, for the negative forms (NOT IN, NOT EXISTS), nullable and non-nullable join columns.

In the individual tests, I used 250000 rows in the first table and around 3000 rows in the secondary table. In this roundup, I’m going to use 3 different row counts, 1000000 rows, 50000 rows and 2500 rows. That should give a reasonable idea for performance at various table sizes. (Not much point in going smaller than 2500 rows. Everything’s fast on 100 rows)

Some notes on the tests.

• The version of SQL is SQL Server 2008 SP1 x64 Developer Edition.
• The tests were run on a laptop. Core-2 Duo, 3 GB memory. SQL limited to 1 processor, so no parallelism possible.
• Each query will be run 10 times, reads, cpu and duration measured by profiler and averaged.
• Each query will be run once before the tests start to ensure that the data is in cache and the execution plans are generated and cached.
• Reproduction scripts will be available for download.

(more…)

And to wrap up the miniseries on IN, EXISTS and JOIN, a look at NOT EXISTS and LEFT OUTER JOIN for finding non-matching rows.

For previous parts, see

• In vs Exists
• In vs Inner Join
• Not in vs Not Exists

I’m looking at NOT EXISTS and LEFT OUTER JOIN, as opposed to NOT IN and LEFT OUTER JOIN, because, as shown in the previous part of this series, NOT IN behaves badly in the presence of NULLs. Specifically, if there are any NULLs in the result set, NOT IN returns 0 matches.

The LEFT OUTER JOIN, like the NOT EXISTS can handle NULLs in the second result set without automatically returning no matches. It behaves the same regardless of whether the join columns are nullable or not. Seeing as NULL does not equal anything, any rows in the second result set that have NULL for the join column are eliminated by the join and have no further effect on the query.

It is important, when using the LEFT OUTER JOIN … IS NULL, to carefully pick the column used for the IS NULL check. It should either be a non-nullable column (the primary key is a somewhat classical choice) or the join column (as nulls in that will be eliminated by the join)

Onto the tests

The usual test tables…

CREATE TABLE BigTable (
id INT IDENTITY PRIMARY KEY,
SomeColumn char(4) NOT NULL,
Filler CHAR(100)
)

CREATE TABLE SmallerTable (
id INT IDENTITY PRIMARY KEY,
LookupColumn char(4) NOT NULL,
SomeArbDate Datetime default getdate()
)

INSERT INTO BigTable (SomeColumn)
SELECT top 250000
char(65+FLOOR(RAND(a.column_id *5645 + b.object_id)*10)) + char(65+FLOOR(RAND(b.column_id *3784 + b.object_id)*12)) +
char(65+FLOOR(RAND(b.column_id *6841 + a.object_id)*12)) + char(65+FLOOR(RAND(a.column_id *7544 + b.object_id)*8))
from master.sys.columns a cross join master.sys.columns b

INSERT INTO SmallerTable (LookupColumn)
SELECT DISTINCT SomeColumn
FROM BigTable TABLESAMPLE (25 PERCENT)
-- (3918 row(s) affected)

First without indexes

-- Query 1
SELECT BigTable.ID, SomeColumn
	FROM BigTable LEFT OUTER JOIN SmallerTable ON BigTable.SomeColumn = SmallerTable.LookupColumn
	WHERE LookupColumn IS NULL

-- Query 2
SELECT ID, SomeColumn FROM BigTable
WHERE NOT EXISTS (SELECT LookupColumn FROM SmallerTable WHERE SmallerTable.LookupColumn = BigTable.SomeColumn)

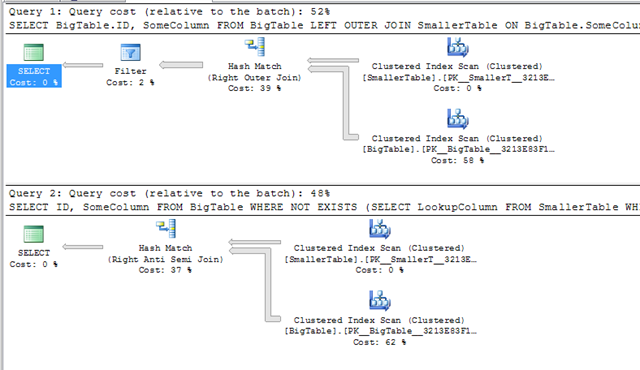

Let’s take a look at the execution plans

(more…)

Continuing with the mini-series on query operators, I want to have a look at NOT EXISTS and NOT IN.

Previous parts of this miniseries are:

• EXISTS vs IN
• IN vs INNER JOIN

Just one note before diving into that. The examples I’m using are fairly simplistic and that’s intentional. I’m trying to find what, if any, are the performance differences in a benchmark-style setup. I’ll have some comments on more complex examples in a later post.

The most important thing to note about NOT EXISTS and NOT IN is that, unlike EXISTS and IN,  they are not equivalent in all cases. Specifically, when NULLs are involved they will return different results. To be totally specific, when the subquery returns even one null, NOT IN will not match any rows.

The reason for this can be found by looking at the details of what the NOT IN operation actually means.

Let’s say, for illustration purposes that there are 4 rows in the table called t, there’s a column called ID with values 1..4

WHERE SomeValue NOT IN (SELECT AVal FROM t)

is equivalent to

WHERE (
SomeValue != (SELECT AVal FROM t WHERE ID=1)
AND
SomeValue != (SELECT AVal FROM t WHERE ID=2)
AND
SomeValue != (SELECT AVal FROM t WHERE ID=3)
AND
SomeValue != (SELECT AVal FROM t WHERE ID=4)
)

Let’s further say that AVal is NULL where ID = 4. Hence that != comparison returns UNKNOWN. The logical truth table for AND states that UNKNOWN and TRUE is UNKNOWN, UNKNOWN and FALSE is FALSE. There is no value that can be AND’d with UNKNOWN to produce the result TRUE

Hence, if any row of that subquery returns NULL, the entire NOT IN operator will evaluate to either FALSE or UNKNOWN and no records will be returned

So what about EXISTS?

Exists cannot return NULL. It’s checking solely for the presence or absence of a row in the subquery and, hence, it can only return true or false. Since it cannot return NULL, there’s no possibility of a single NULL resulting in the entire expression evaluating to UNKNOWN.

Hence, when the column in the subquery that’s used for comparison with the outer table can have nulls in it, consider carefully which of NOT EXISTS or NOT IN you want to use.

Ok, but say there are no nulls in the column. How do they compare speed-wise. I’m going to do two tests, one where the columns involved in the comparison are defined as NULL and one where they are defined as NOT NULL. There will be no NULL values in the columns in either case. In both cases, the join columns will be indexed. After all, we all index our join columns, right?

So, first test, non-nullable columns. First some setup

CREATE TABLE BigTable (
id INT IDENTITY PRIMARY KEY,
SomeColumn char(4) NOT NULL,
Filler CHAR(100)
)

CREATE TABLE SmallerTable (
id INT IDENTITY PRIMARY KEY,
LookupColumn char(4) NOT NULL,
SomeArbDate Datetime default getdate()
)

INSERT INTO BigTable (SomeColumn)
SELECT top 250000
char(65+FLOOR(RAND(a.column_id *5645 + b.object_id)*10)) + char(65+FLOOR(RAND(b.column_id *3784 + b.object_id)*12)) +
char(65+FLOOR(RAND(b.column_id *6841 + a.object_id)*12)) + char(65+FLOOR(RAND(a.column_id *7544 + b.object_id)*8))
from master.sys.columns a cross join master.sys.columns b

INSERT INTO SmallerTable (LookupColumn)
SELECT DISTINCT SomeColumn
FROM BigTable TABLESAMPLE (25 PERCENT)
-- (3898 row(s) affected)

CREATE INDEX idx_BigTable_SomeColumn
ON BigTable (SomeColumn)
CREATE INDEX idx_SmallerTable_LookupColumn
ON SmallerTable (LookupColumn)

Then the queries

-- Query 1
SELECT ID, SomeColumn FROM BigTable
WHERE SomeColumn NOT IN (SELECT LookupColumn FROM SmallerTable)

-- Query 2
SELECT ID, SomeColumn FROM BigTable
WHERE NOT EXISTS (SELECT LookupColumn FROM SmallerTable WHERE SmallerTable.LookupColumn = BigTable.SomeColumn)

The first thing to note is that the execution plans are identical.

The execution characteristics are also identical.

Query 1
Table ‘BigTable’. Scan count 1, logical reads 342, physical reads 0.
Table ‘SmallerTable’. Scan count 1, logical reads 8, physical reads 0.

SQL Server Execution Times:
CPU time = 156 ms,  elapsed time = 221 ms.

Query 2
Table ‘BigTable’. Scan count 1, logical reads 342, physical reads 0.
Table ‘SmallerTable’. Scan count 1, logical reads 8, physical reads 0.

SQL Server Execution Times:
CPU time = 156 ms,  elapsed time = 247 ms.

So, at least for the case where the columns are defined as NOT NULL, these two perform the same.

What about the case where the columns are defined as nullable? I’m going to simply alter the two columns involved without changing anything else, then test out the two queries again.

ALTER TABLE BigTable
 ALTER COLUMN SomeColumn char(4) NULL

ALTER TABLE SmallerTable
 ALTER COLUMN LookupColumn char(4) NULL

And the same two queries

-- Query 1

SELECT ID, SomeColumn FROM BigTable
WHERE SomeColumn NOT IN (SELECT LookupColumn FROM SmallerTable)

-- Query 2
SELECT ID, SomeColumn FROM BigTable
WHERE NOT EXISTS (SELECT LookupColumn FROM SmallerTable WHERE SmallerTable.LookupColumn = BigTable.SomeColumn)

And as for their performance…

Query 1
Table ‘SmallerTable’. Scan count 3, logical reads 500011, physical reads 0.
Table ‘BigTable’. Scan count 1, logical reads 437, physical reads 0.

SQL Server Execution Times:
CPU time = 827 ms,  elapsed time = 825 ms.

Query 2
Table ‘BigTable’. Scan count 1, logical reads 437, physical reads 0.
Table ‘SmallerTable’. Scan count 1, logical reads 9, physical reads 0.

SQL Server Execution Times:
CPU time = 156 ms,  elapsed time = 228 ms.

Radically different execution plans, radically different performance characteristics. The NOT IN took over 5 times longer to execute and did thousands of times more reads.

Why is that complex execution plan required when there may be nulls in the column? I can’t answer that one, probably only one of the query optimiser developers can, however the results are obvious. When the columns allow nulls but has none, the NOT IN performs significantly worse than NOT EXISTS.

So, take-aways from this?

Most importantly, NOT EXISTS and NOT IN do not have the same behaviour when there are NULLs involved. Chose carefully which you want.

Columns that will never contain NULL values should be defined as NOT NULL so that SQL knows there will never be NULL values in them and so that it doesn’t have to produce complex plans to handle potential nulls.

On non-nullable columns, the behaviour and performance of NOT IN and NOT EXISTS are the same, so use whichever one works better for the specific situation.

One more to go on this: LEFT OUTER JOIN with the IS NULL check vs NOT IN
